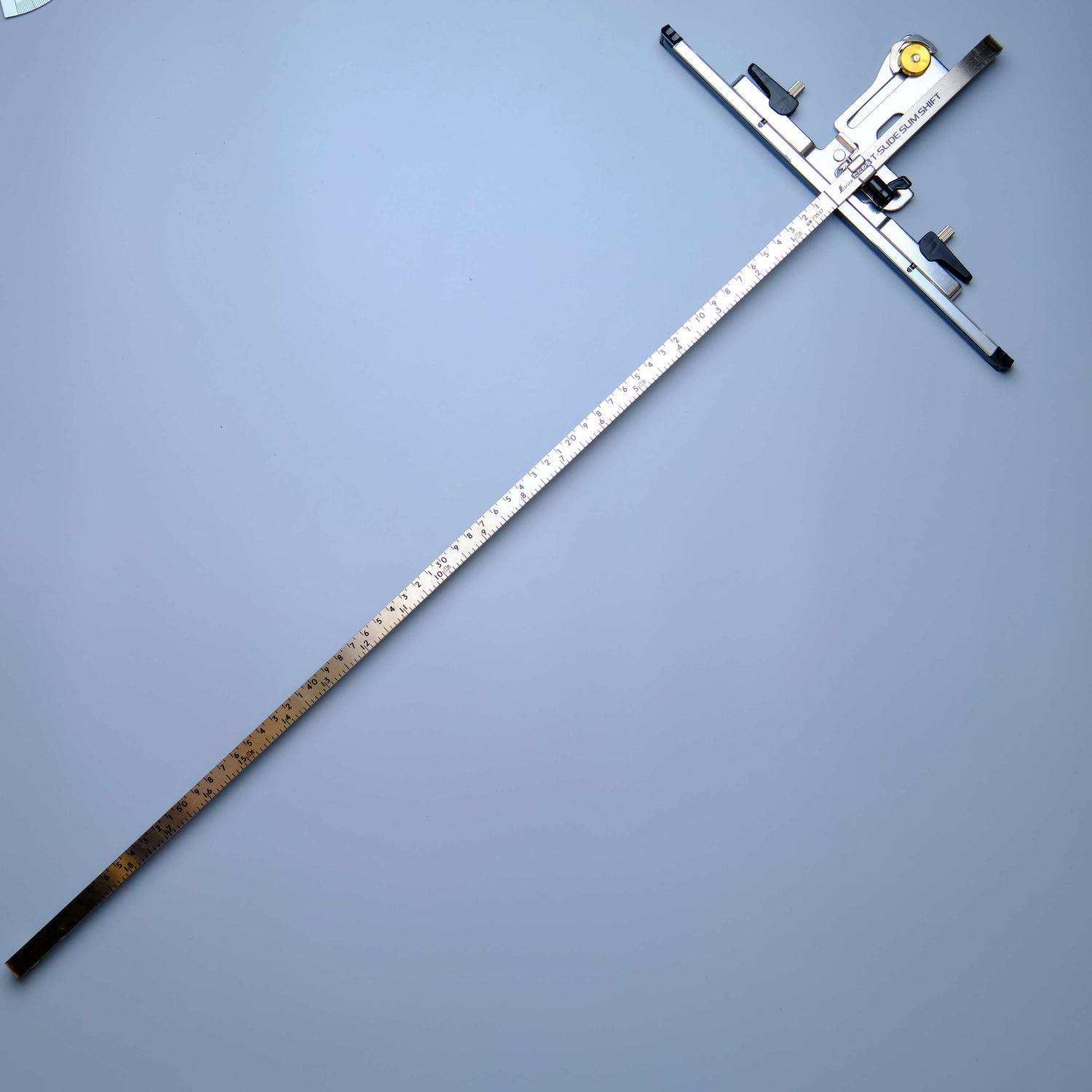

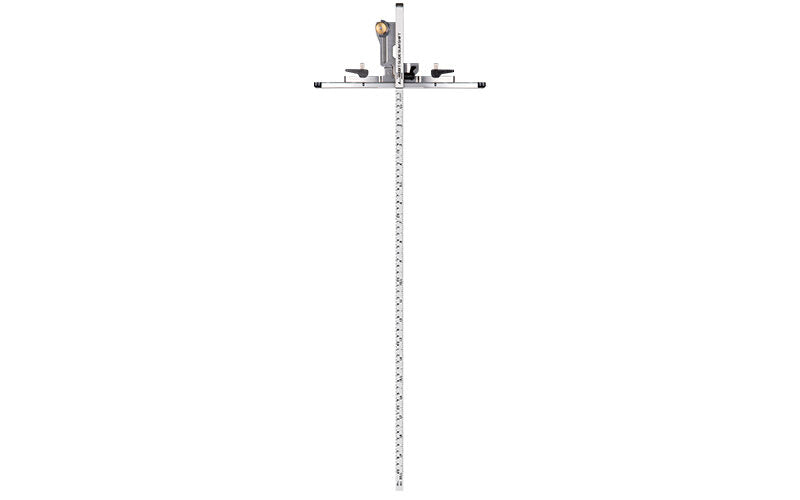

60cm Foldable Parallel Circular Saw Guide

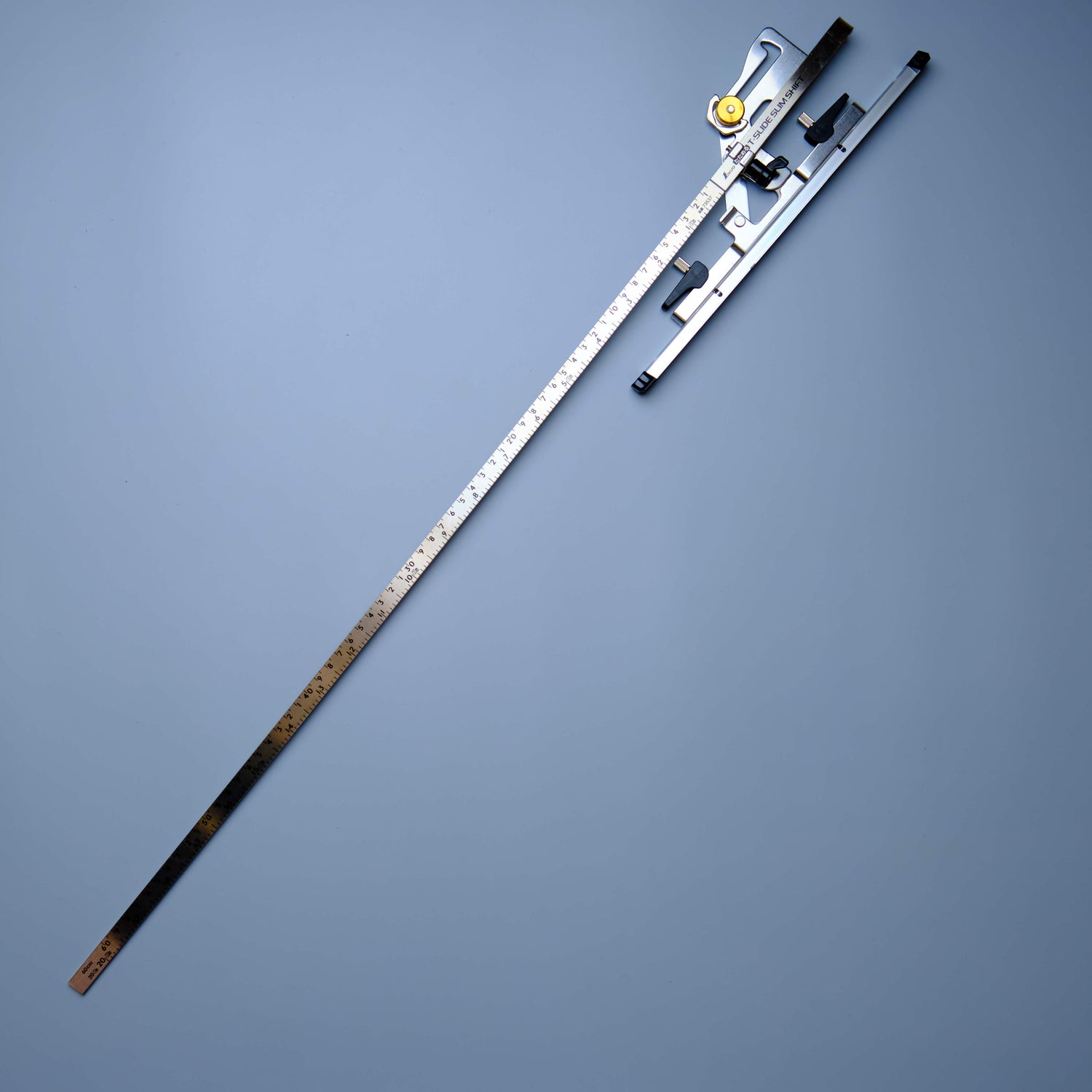

The Shinwa 60cm Foldable T-Slide Slim Shift Circular Saw Guide Ruler is a compact, versatile cutting guide designed for convenience, precision, and adaptability. It folds down to just 89 mm in width for easy storage and transport, making it ideal for tradespeople and workshop professionals on the move.

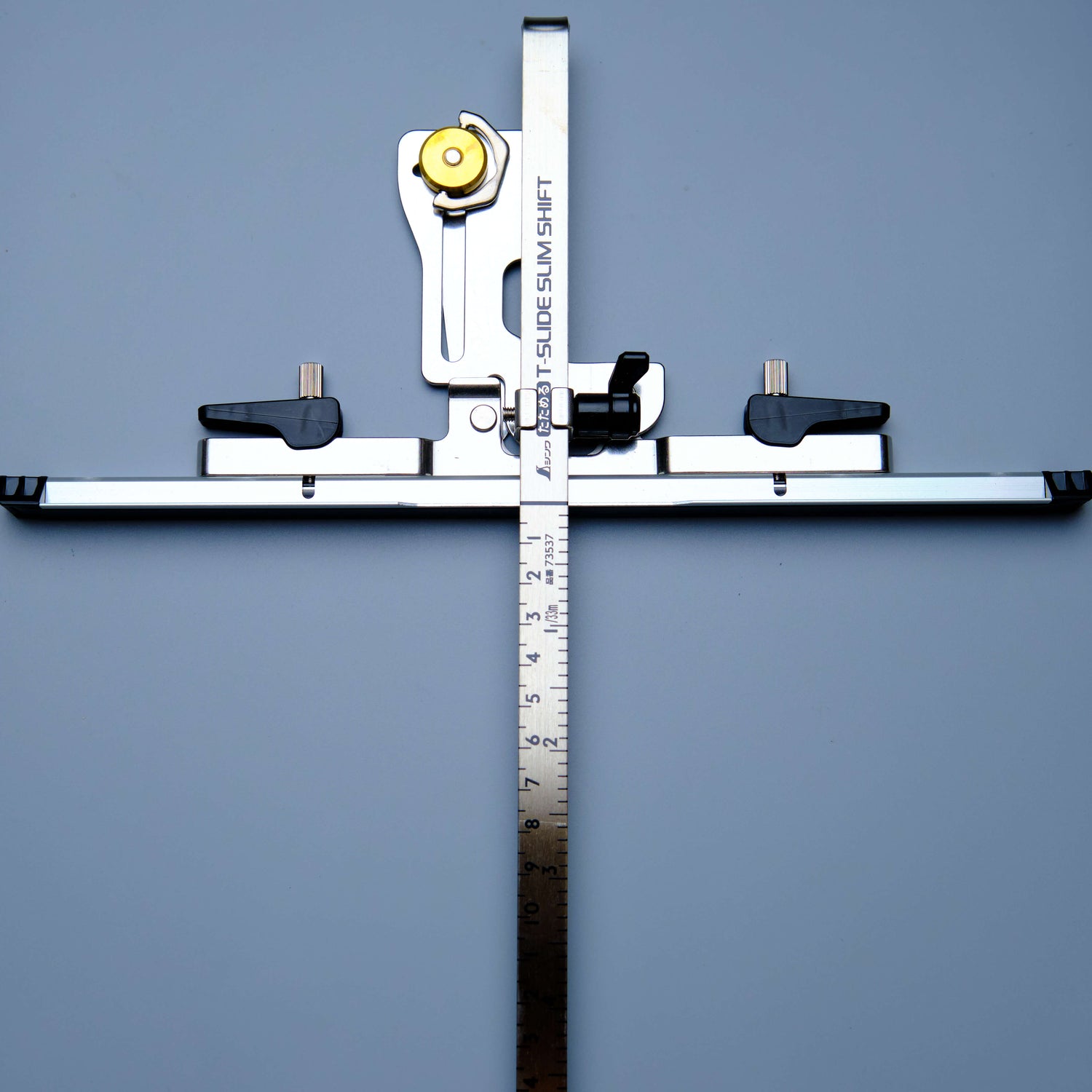

The guide fixes securely at a 90° angle using a screw along the slit, allowing for consistent and square alignment. It features dual cutting modes - thin plate mode and thin cutting mode - enabling smooth transitions between materials. By raising or tilting the butt, you can cut thin materials without binding, or make precise, small cuts.

The abutment height is designed to clear stacked 9mm boards, ensuring it won't obstruct secondary materials. Made with corrosion-resistant SUS304 stainless steel, the rod offers long-lasting durability and strength, while UHPE tape and a polycarbonate protective cap minimise friction and material wear.

Specifications:

• Abutting Height:
  • Thin Plate Mode: 15 mm
  • Thin Cutting Mode: 9 mm
• Body Size: 760 x 275 x 20 mm (Width 89 mm when folded)
• Materials:

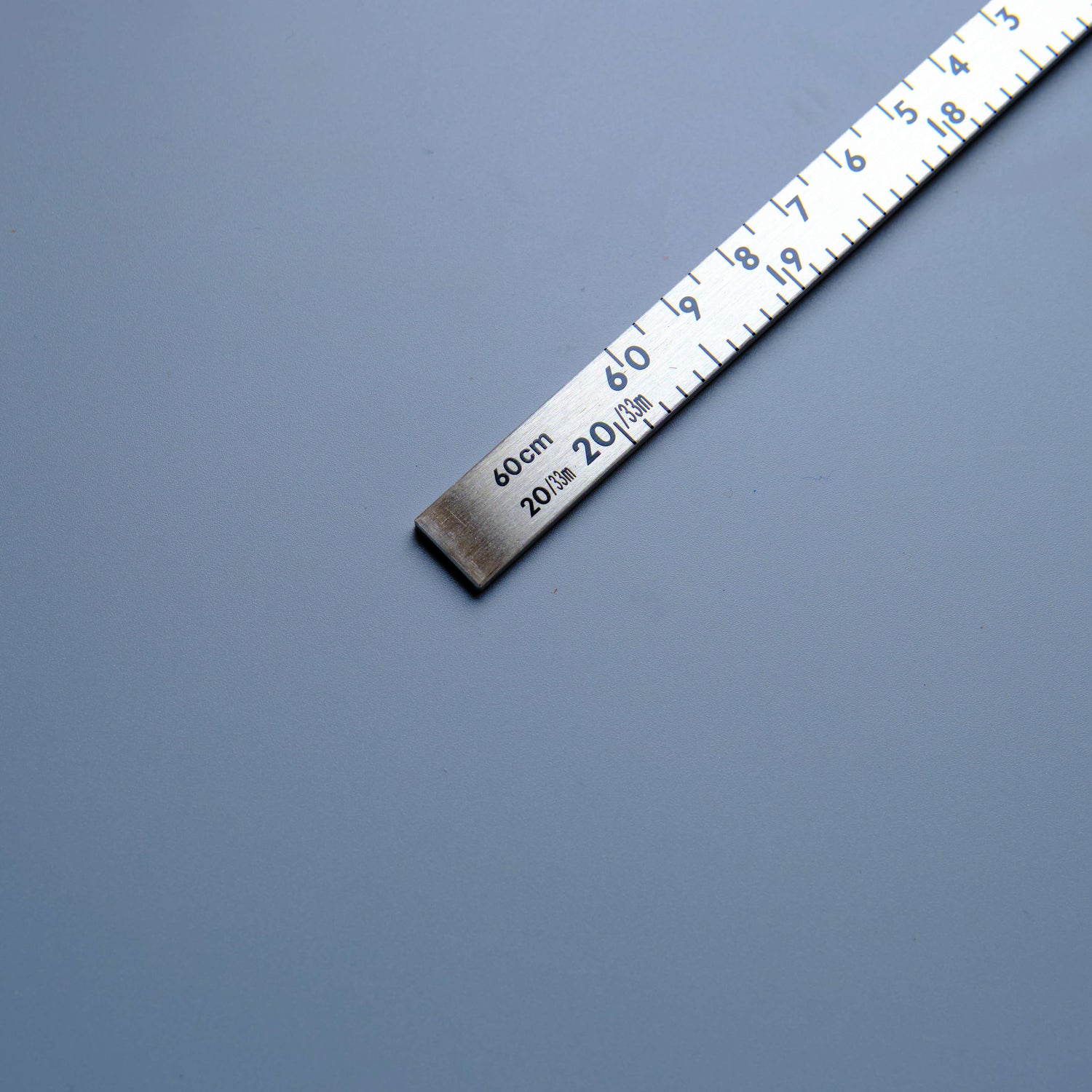

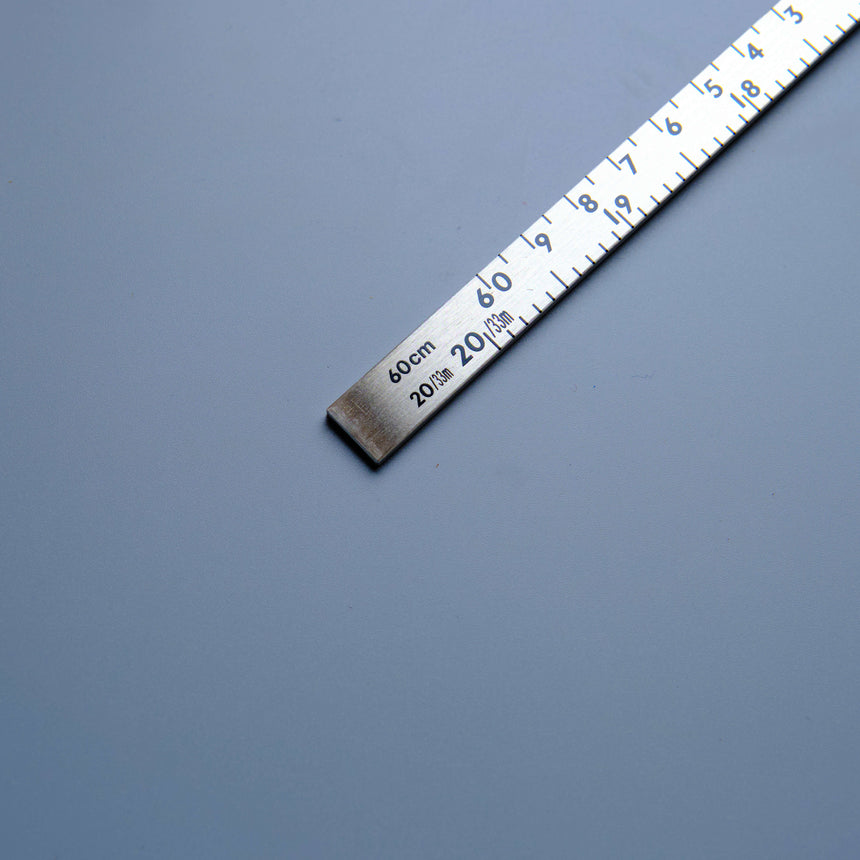

  • Rod: Stainless Steel (SUS304)
  • Abutment: Aluminium
  • Stopper Screw: Stainless Steel, Brass
  • Protective Cap: Polycarbonate Resin
  • One-Touch Lever & Set Screw: Polyacetal Resin
• Made in Japan
