Shinwa

1m Next Foldable Circular Saw Guide

$179.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Orders over $200 ship FREE (Aus only).
We dispatch every weekday at 2pm.
Regular Postage: $12.50
Express Postage: $19.00
For timeframes or international addresses, click here.

In-Store Pickup - Sydney

Select In-Store Pickup at checkout to collect your order at 29 Production Ave, Kogarah 2217.
Store hours 10am-4pm Tues-Fri.

JTA Quality Guarantee

JTA stands behind the quality of our tools with warranty policies that exceed Australian consumer law. Read about them here.

Earn [points_amount] when you buy this item.

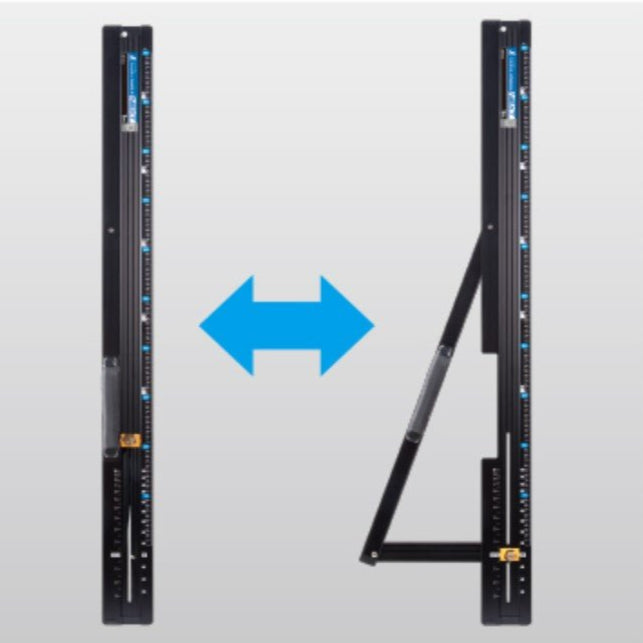

  • Foldable Design: Allows for compact storage and easy transport.
  • Adjustable Angles: Can be fixed at 90° or adjusted between 75° and 135°.
  • Dual Scales: Features both an angle scale and a reverse slope dimension scale for versatile cutting.

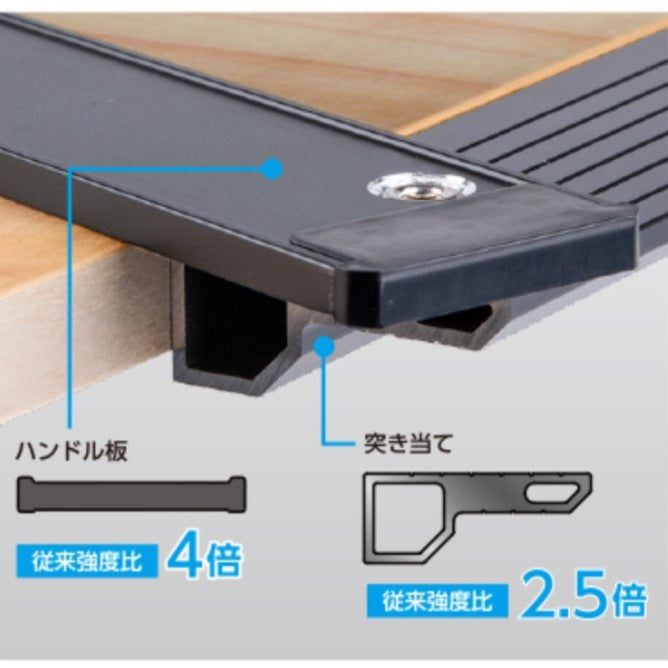

  • Material Protection: Thin stainless steel plate on the guide surface with a protective cap prevents material damage.
  • High Accuracy: Maintains a squareness tolerance of ±0.1mm per 100mm at 90°.
  • Lightweight & Portable: Easy to handle for large-format cuts.

Description

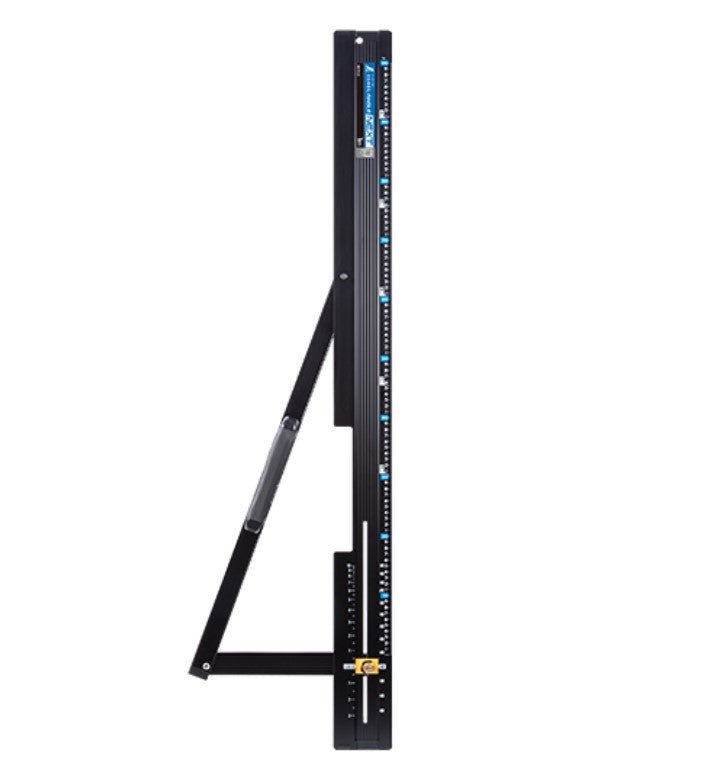

The Shinwa 1m Next Foldable Circular Saw Guide is a professional-grade tool built for both portability and precision. Its innovative foldable butt allows for compact storage, while the body remains lightweight and easy to handle, making it ideal for large-format cutting tasks whether you're in the workshop or on-site.

This versatile guide can be fixed at a 90° angle using a screw along the slit, or easily adjusted between 75° and 135° by changing the angle of the butt. It features both an angle scale and a reverse slope dimension scale to support a wide range of cutting applications. A thin stainless steel plate on the guide surface, paired with a protective cap, helps prevent damage to your materials during use.

Engineered for exceptional accuracy, it maintains a squareness tolerance of ±0.1mm per 100mm at 90°, making it perfect for framing, cabinetry, and other precision cuts.

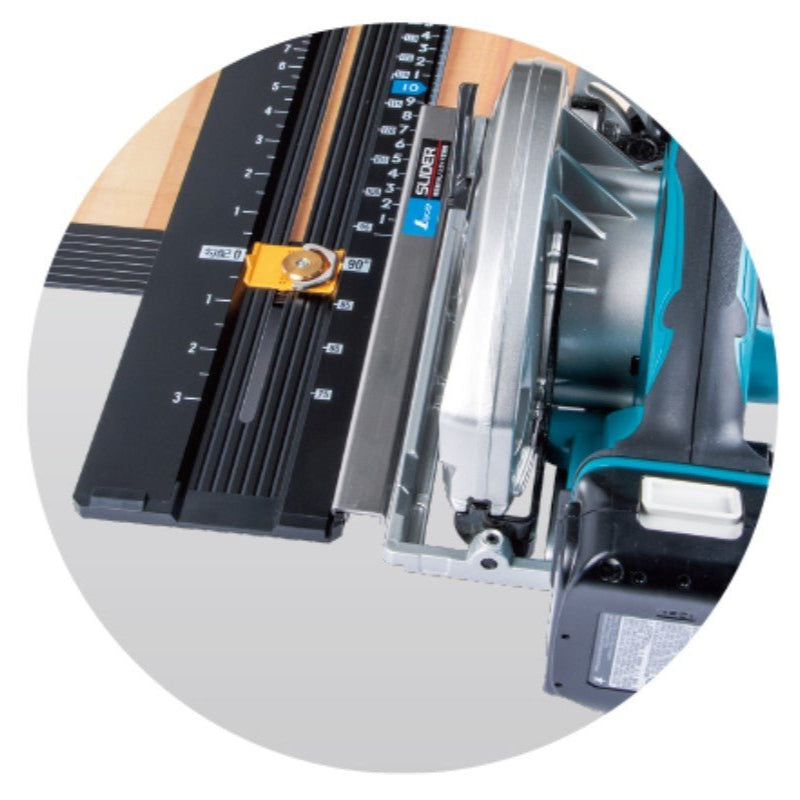

Note: Circular saw guide slider is sold separately

Made in Japan

Specifications

  • Scale: 1 meter Squareness
  • Accuracy: ±0.1 mm per 100 mm (at 90°)
  • Pole Size: 1217 x 100 x 7 mm
  • Angle Adjustment Range: 75° to 135°
  • Hitting Height: 15 mm
  • Body Size: 1217 x 345 x 73 mm (100 mm width when folded)
  • Weight: 1200 g
  • Materials:
    • Body: Aluminium
    • Guide Surface: Stainless Steel
    • Protective Cap & Angle Indicator: ABS Resin
    • Knob Screw: Stainless Steel
    • Handle: ABS Resin, Elastomer Resin
