Shinwa

45cm Next Foldable Circular Saw Guide

$159.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Orders over $200 ship FREE (Aus only).
We dispatch every weekday at 2pm.
Regular Postage: $12.50
Express Postage: $19.00
For timeframes or international addresses, click here.

In-Store Pickup - Sydney

Select In-Store Pickup at checkout to collect your order at 29 Production Ave, Kogarah 2217.
Store hours 10am-4pm Tues-Fri.

JTA Quality Guarantee

JTA stands behind the quality of our tools with warranty policies that exceed Australian consumer law. Read about them here.

Earn [points_amount] when you buy this item.

Description

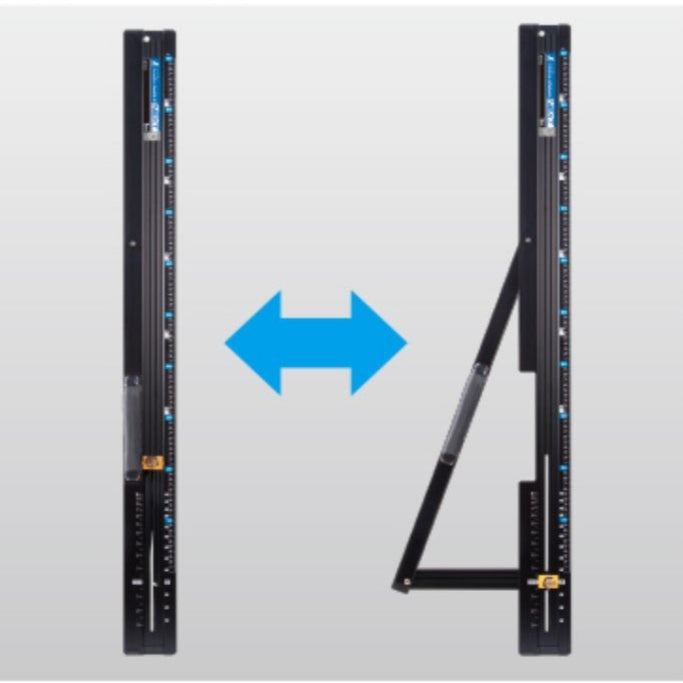

The Shinwa 45cm Next Foldable Circular Saw Guide is a versatile L-angle cutting tool designed for precision and portability. Its foldable butt allows for compact storage, while the body remains lightweight and easy to carry - ideal for professional carpenters and on-site work.

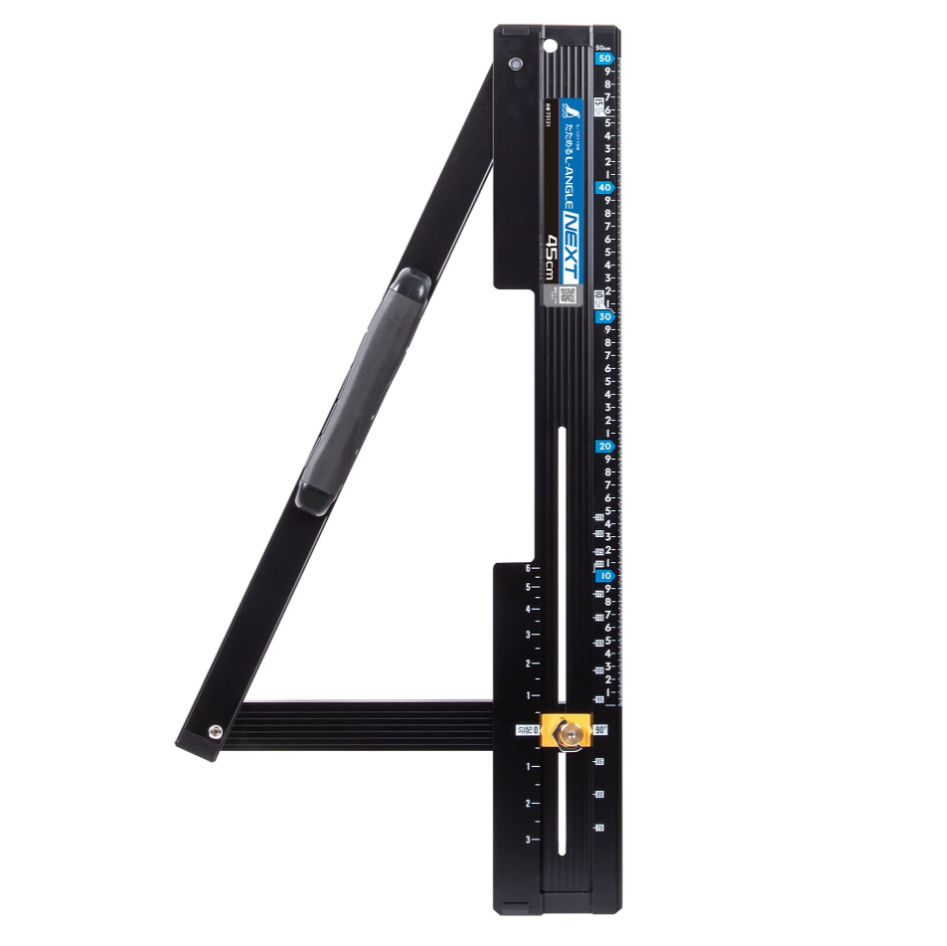

The guide can be fixed at a 90° angle using the screw along the slit, or adjusted within a range of 75° to 135° by modifying the butt's position. It features both an angle scale and a reverse slope dimension scale for added flexibility. The thin stainless steel surface is lined with a protective cap to prevent material damage during use.

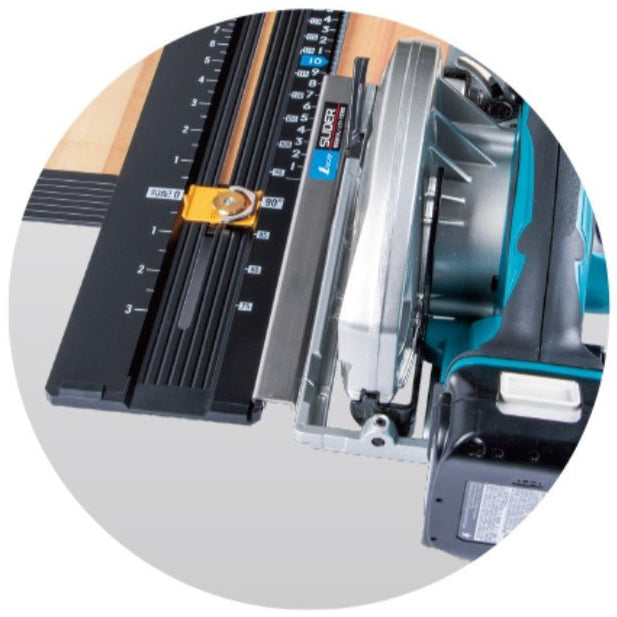

Perfect for angle or square cuts, this tool ensures accuracy with a squareness tolerance of ±0.1mm per 100mm.

Note: Circular saw guide slider is sold separately

Specifications:

  • Scale: 50 cm
  • Body Size: 687 x 346 x 73 mm (100 mm width when folded)
  • Squareness Accuracy: ±0.1 mm per 100 mm (90° only)
  • Pole Size: 687 x 100 x 7 mm
  • Angle Adjustment Range: 75° to 135°
  • Hitting Height: 15 mm
  • Materials:
    • Body: Aluminium
    • Guide Surface: Stainless Steel
    • Protective Cap, Angle Indicator Plate: ABS Resin
    • Knob Screw: Stainless Steel
    • Handle: ABS Resin, Elastomer Resin
  • Made in Japan
