Shinwa

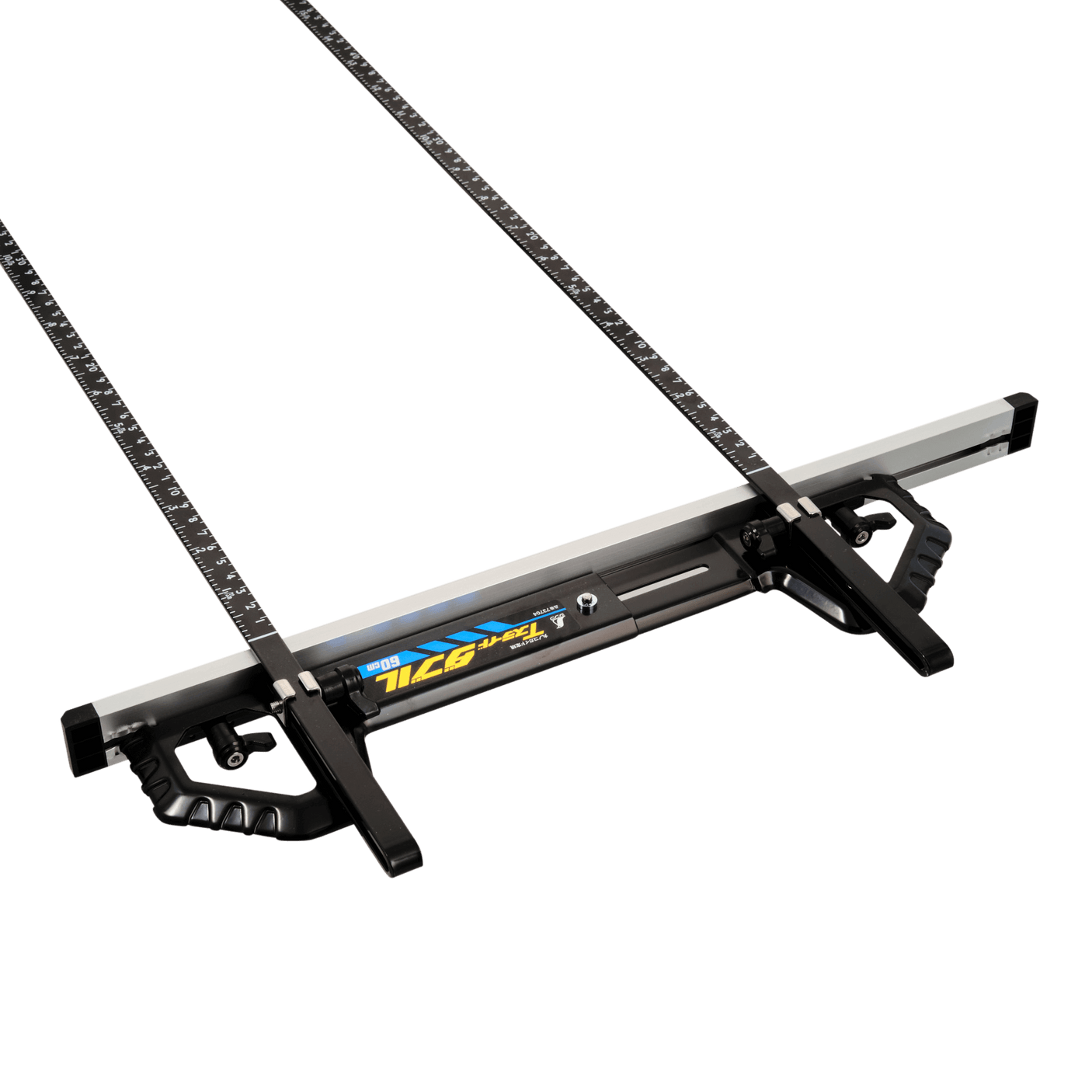

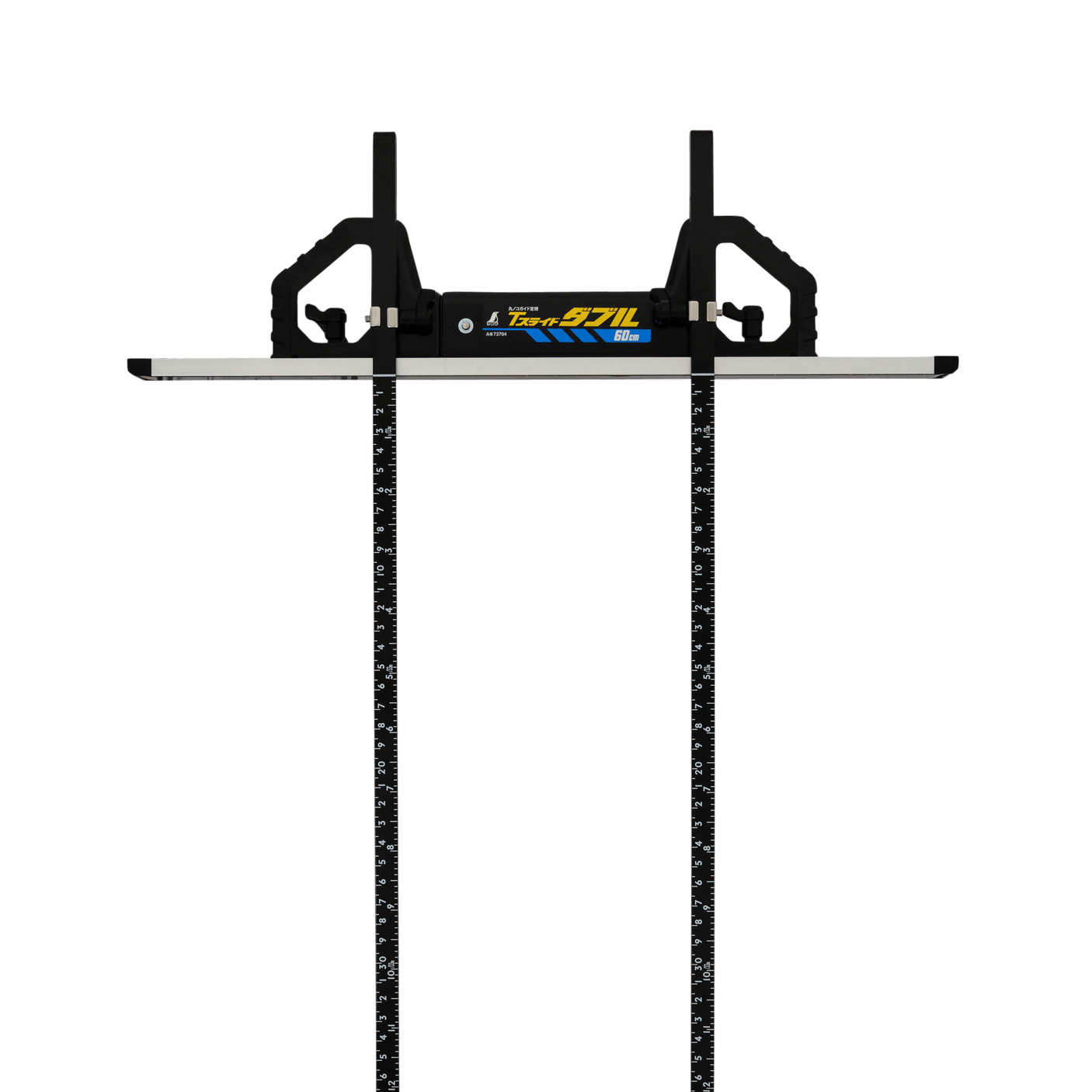

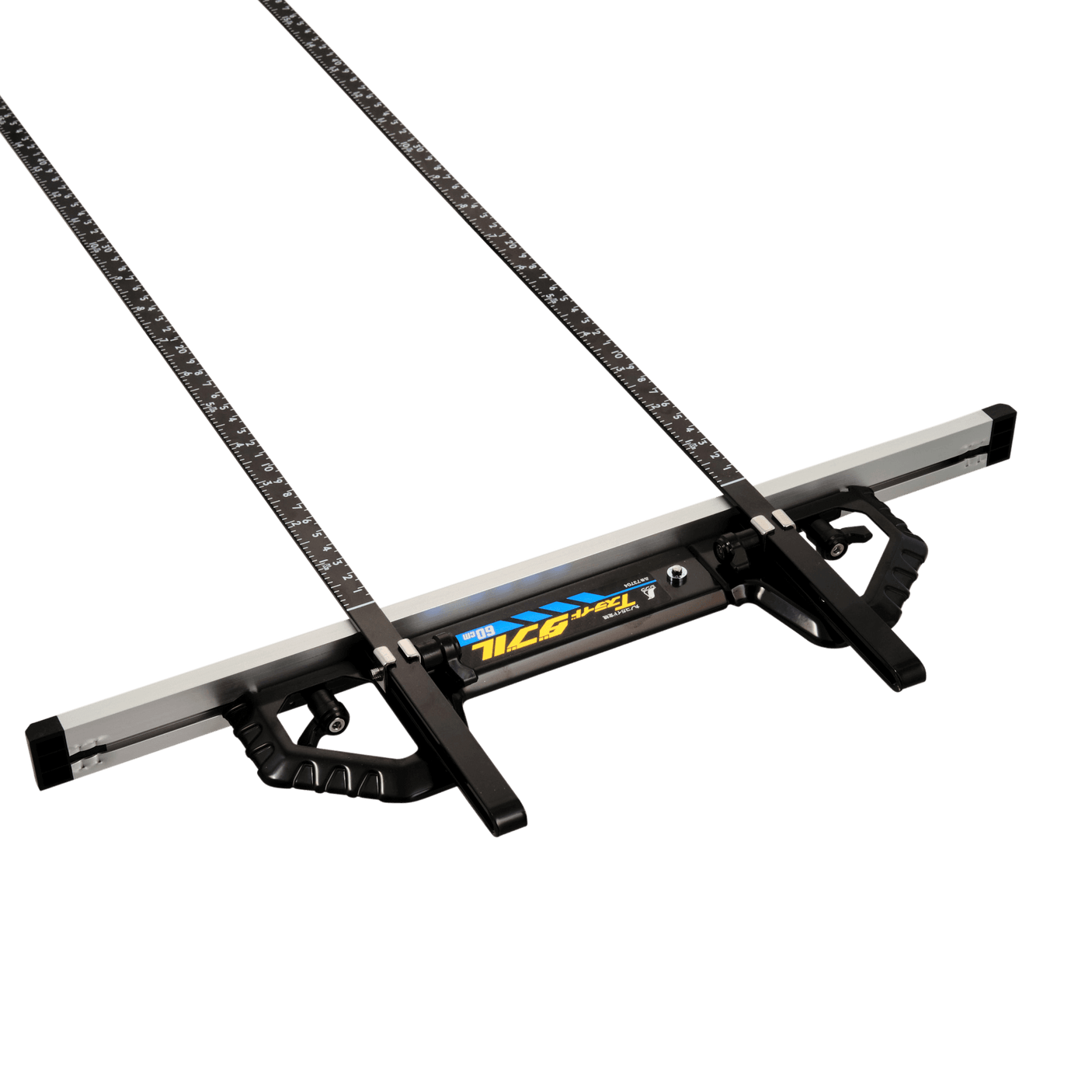

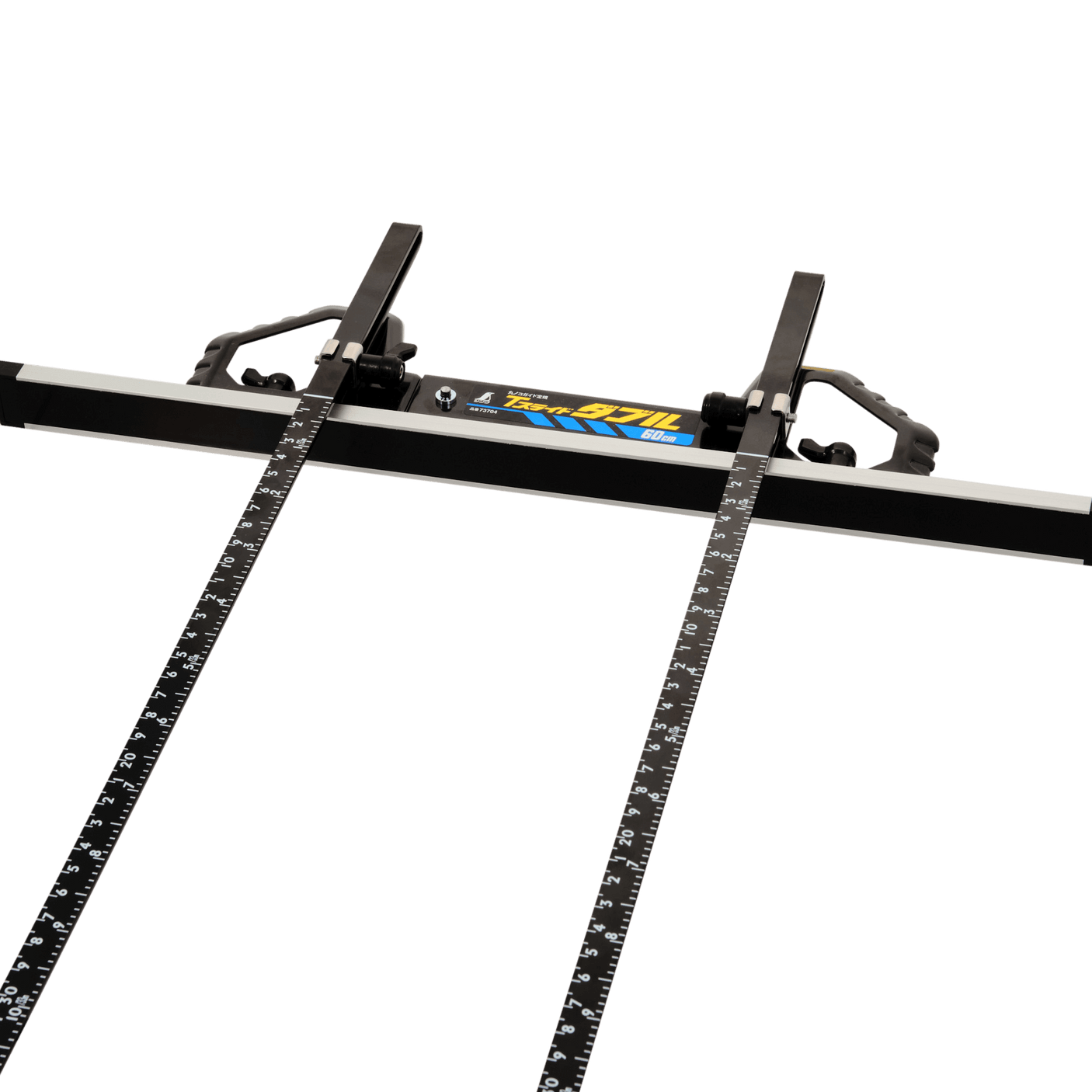

60cm Double T-Slide Parallel Saw Guide

$110.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Orders over $200 ship FREE (Aus only).
We dispatch every weekday at 2pm.
Regular Postage: $12.50
Express Postage: $19.00
For timeframes or international addresses, click here.

In-Store Pickup - Sydney

Select In-Store Pickup at checkout to collect your order at 29 Production Ave, Kogarah 2217.
Store hours 10am-4pm Tues-Fri.

JTA Quality Guarantee

JTA stands behind the quality of our tools with warranty policies that exceed Australian consumer law. Read about them here.

Earn [points_amount] when you buy this item.

Description

The Shinwa 60cm T-Slide Double Circular Saw Guide is a precision tool designed for use with hand-held circular saws, offering the cutting accuracy of a track saw while retaining the portability of a standard circular saw systems. It is ideal for applications involving sheet materials and structural timber, delivering clean, controlled cuts across a wide range of woodworking and construction projects.

This guide features dual blade slots with a 12 mm x 3 mm cross-section compatible with most circular saws. The distance between the two blades can be independently adjusted via the sliding fence, which is engineered to move both forwards/backwards and up/down. Built-in stabilisers reduce blade deflection and flex during operation, enhancing accuracy and user control.

A low-friction UHPE lining on the fence ensures smooth movement and minimal resistance, making repeat cuts easier and more reliable.

Specifications:

  • Min distance between arms: 165mm (centre to centre)
  • Max distance between arms: 240mm (centre to centre)
  • Max Extension of Guide: 60 cm
  • Abutting Height: 25 mm
  • Body Size: 762 x 425 x 30 mm
  • Weight: 920 g
  • Materials:
    • Body: Iron
    • Abutment: Aluminium
    • Fence Lining: UHPE Tape
    • Fixing and Clamp Components: ABS Resin, Polyacetal Resin
  • Made in Japan
