STAR-M Super Clean Cut drill bits · Build your own set

The cleanest hole
you'll ever drill.

Precision-milled STAR-M bits with a dead-centre pin and knife-like flutes. Pick exactly the sizes you need, mix any of the 25, and save up to 10%.

5.0 / 5 from 23 reviews

  • 25 sizes, 3mm to 22mm
  • Dispatched same day before 12pm
  • 14-day returns

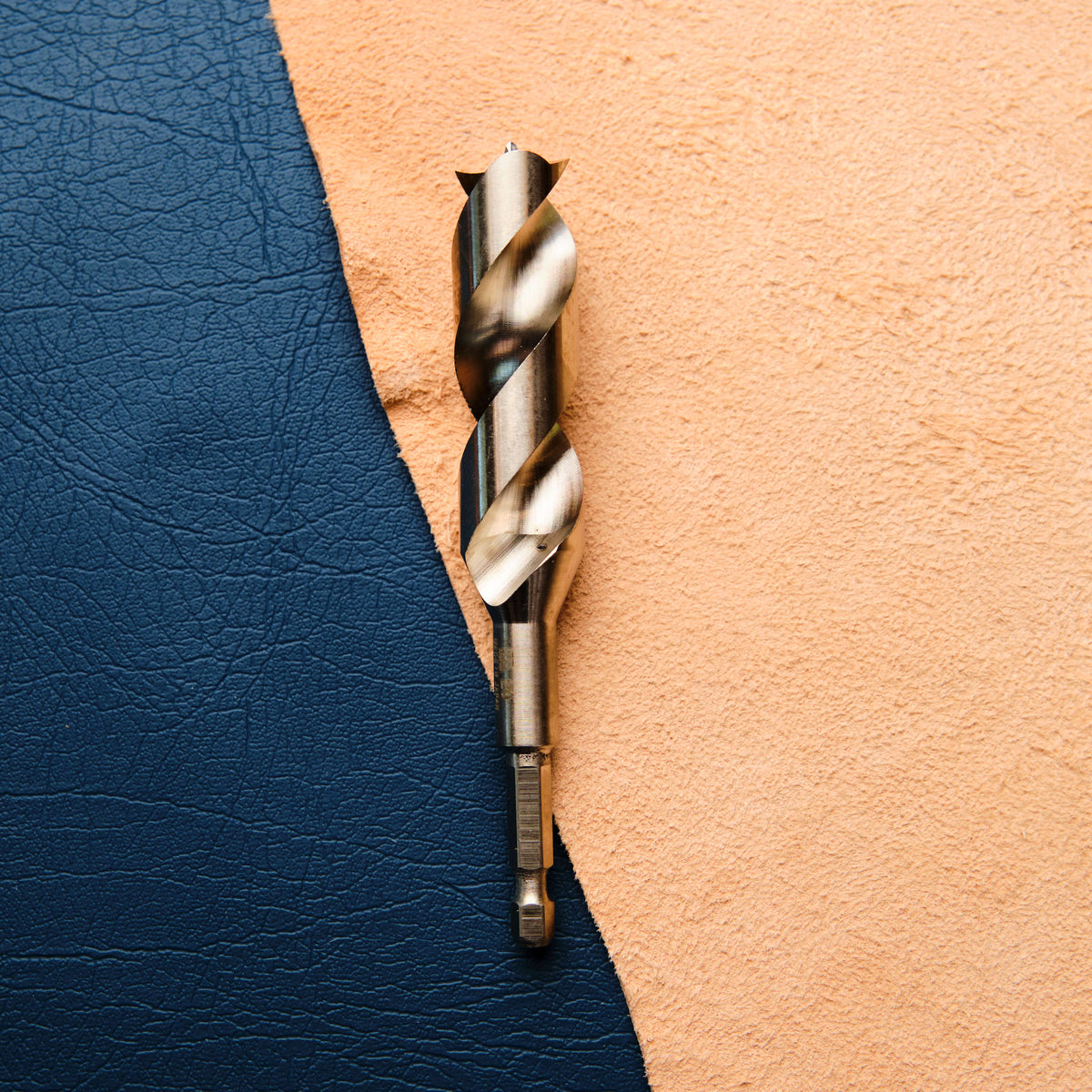

STAR-M Super Clean Cut drill bit with hex shank, on leather Save 10% on 10+ bits

5.0 / 5

from 21 reviews

4,800+

bits sold in the last 12 months

25 sizes

3mm to 22mm, including half sizes

Before 12pm

orders are dispatched the same day

Why they cut so clean

Engineered for a clean hole, every time

Most bits tear the fibres as they go. STAR-M bits cut them in three steps instead.

01

A pin dead in the centre

The centre pin is precision milled perfectly in the middle of the bit, so every hole starts exactly where you mark it and stays centred.

02

Spurs and wings

Hooked spurs score and clear the perimeter of the cut, then semi-circular wings incise a little deeper to part the waste from the surrounding timber.

03

A curved cutting edge

A curved edge planes the waste out and sends it up the knife-like flutes, giving clean entry and exit holes across the grain and with it.

Made for

  • Softwood
  • Hardwood
  • Plywood
  • Bamboo
  • Acrylic
  • PVC
  • Rubber

Tip: low speed for plastics, your highest speed for fibrous materials, and feed the bit in gradually.

Up close

See the detail

Every STAR-M bit is precision milled in Japan. Tap any photo to take a closer look.

Specifications

Sizes and specs

The STAR-M No.601 Multi Borer, made in Japan for wood, bamboo, acrylic, hard rubber and PVC.

STAR-M No.601 dimension drawing showing diameter D, spiral length SL, overall length L and hex shank d
D
Diameter: 3mm to 22mm
SL
Spiral (flute) length
L
Overall length
d
Shank: 6.35mm (¼″) hex
  • High-carbon steel, precision milled in Japan
  • 6.35mm (¼″) hex shank for quick-change chucks and impact drivers
  • Use with a 14.4V+ impact driver or cordless drill, a power drill or a drill press
  • Speed under 3,000 rpm; 1,300–3,000 rpm for resin 15mm+ thick
  • Brad point controls depth for blind holes as well as through holes
SizesL overallSL spiral
3mm – 7mm80mm35mm
7.5mm – 12mm80mm40mm
13mm – 19mm116mm66mm
20mm – 22mm125mm75mm

Lengths from STAR-M for the No.601 range.

Build your set

Pick your sizes, save up to 10%

Tap a size to add it, use + and − for more than one, or start from one of our sets. 5+ bits save 5%, 10+ save 10%, applied automatically in your cart.

1 Pick your sizes
Quick fill:
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2 Add the extras optional · full price
Star-M Drill Roll Bag - 15 Pocket

Star-M Drill Roll Bag - 15 Pocket $37

15 pockets, a tip protection cover and a zip pocket for stoppers.

0

Star-M Drill Stoppers

Ball-bearing depth stops that won't mark your work. Tap 'Match my bits' to add one for each size.

0
0
0
0
0
0
0

Rated 5 out of 5 by woodworkers

From luthiers to men's sheds. Real reviews from JTA customers.

“These are the best drill bits that I have ever had the privilege of owning and using. I do a lot of pieced lathe work and these bits provide the cleanest entry and exit holes.”
Dale C. · Super Clean Cut bits
“Best cutting drill ever. Never before seen holes as clean.”
Michael S. · Super Clean Cut bits
“I've used these drill bits for sometime in making musical instruments. I know no finer drill bit.”
David T. · Super Clean Cut bits
“Very very impressive performance in Australian hardwood.”
Bevan B. · Super Clean Cut bits
“I need a really sharp drill bit for drilling tuner holes in highly figured exotic timber without the chance of tear out, this bit is perfect.”
Lee W. · Super Clean Cut bits
“I take both to my men's shed every week, ensuring that I can find a sharp bit in the right size immediately instead of scrabbling through a drawer full of blunt unsized bits.”
Mark W. · Drill Roll Bag

Questions

How does the saving work?

Mix any sizes you like. 5 or more bits in your cart and every bit is 5% off; 10 or more and it's 10% off. It's applied automatically at checkout. The roll bag and depth stoppers are full price.

Should I buy a fixed set or build my own?

Our fixed sets come with the 15-pocket roll bag. Building your own lets you choose exact sizes and quantities, and at 10 or more bits the 10% saving beats the fixed sets. Add the roll bag if you want somewhere to keep them.

What can I drill with them?

They're designed for soft materials that can otherwise be problematic to drill: softwood, hardwood, rubber, acrylic and PVC, and they cut cleanly even in fibrous materials like bamboo.

What speed should I use?

Keep it under 3,000 rpm. Use a lower speed for plastics and your drill's highest speed for fibrous materials like bamboo, and feed the bit in gradually. For acrylic or other resin 15mm or thicker, use about 1,300–3,000 rpm with a backing board underneath.

Can I use them in an impact driver?

Yes. They have a 6.35mm (¼″) hex shank, so they click straight into a quick-change impact driver or drill chuck. STAR-M recommends a 14.4V or larger impact driver or cordless drill; a corded drill or drill press works too.

Why a brad point and not a screw point?

A screw point pulls the bit into the timber on its own, which makes it hard to stop and can tear the exit. A brad point only goes as deep as you push it, so you control the depth for clean blind holes as well as through holes, and it starts exactly on your mark.

Do the depth stoppers work with these bits?

Yes. The stoppers have ball bearings so they stop spinning when they touch the work and won't mark it. Because these bits have a short body, the maximum depth you can set with a stopper is about 10–12mm.

Shipping and returns

Orders placed before 12pm are dispatched the same day, and shipping is free over $200. If you're not happy, you can return it within 14 days.
