Aluminium Speed Square Gauge for 2x4 Lumber

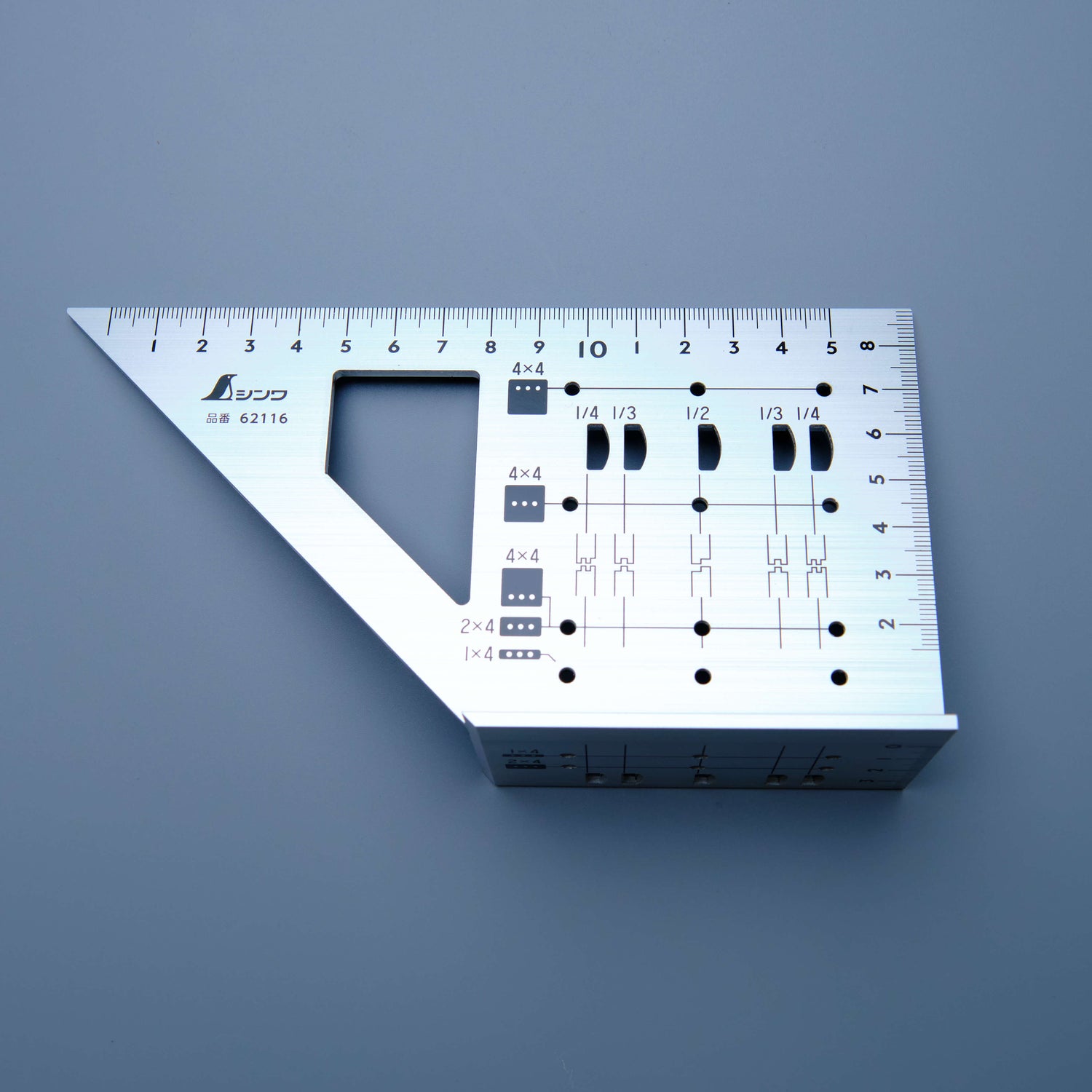

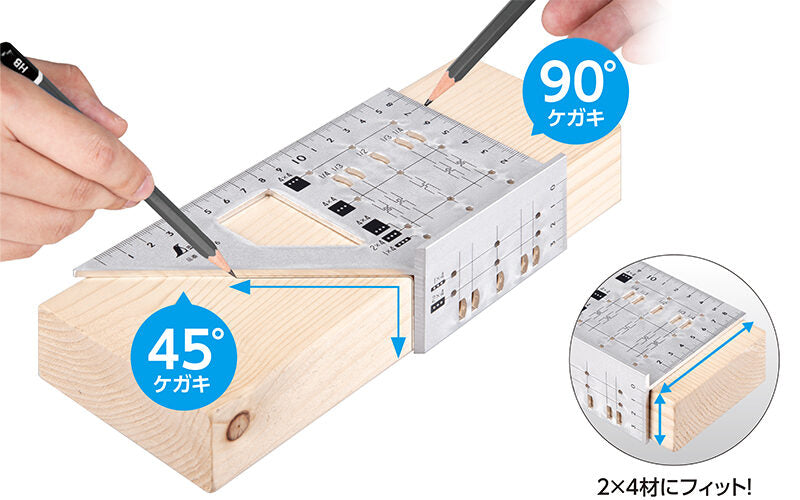

This new release from Shinwa is an indispensable tool designed specifically for use with 2x4 lumber, with all of its functions derived from the standard 89mm width. The perimeter of the tool provides an accurate 45° and 90° measurement, as well as a handy 150mm ruler. Rectangular holes on both faces of the gauge are perfect for marking lap- and finger-joints, allowing you to easily subdivide a joint into 2, 3, or 4 parts. Additionally, the circular holes are strategically placed to help you mark screw spacing with consistent precision.

Specifications

• Overall Dimensions: 178 × 92 × 51 mm
• Reference Width: 89mm
• Ruler Length: 150mm
• Material: Aluminum
