Aluminum Bolt and Nut Gauge - Blue

A handy all-in-one gauge designed to quickly identify bolt, nut and screw sizes, making it an essential addition to any toolbox.

Lightweight aluminium construction resists rust and is built for long-lasting durability.

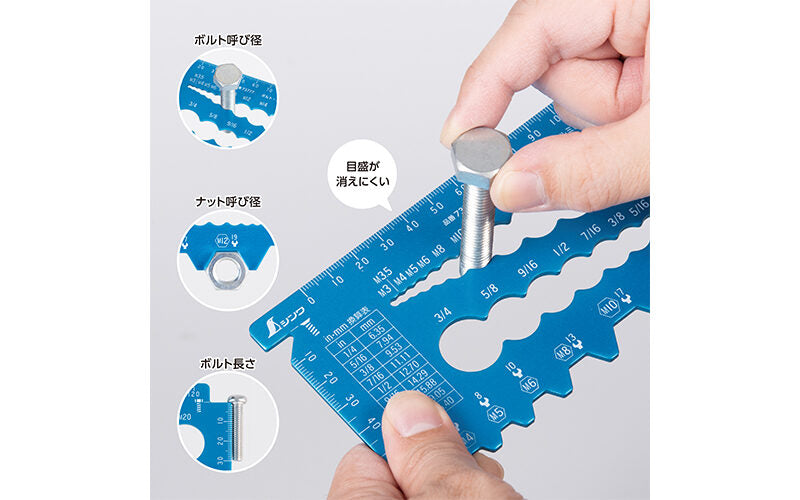

Quickly identify bolt, nut and spanner sizes by simply placing the fastener against the gauge—nuts can be measured without removing them from the bolt.

Measures the length of a wide range of screw and bolt types, making fastener selection quick and easy.

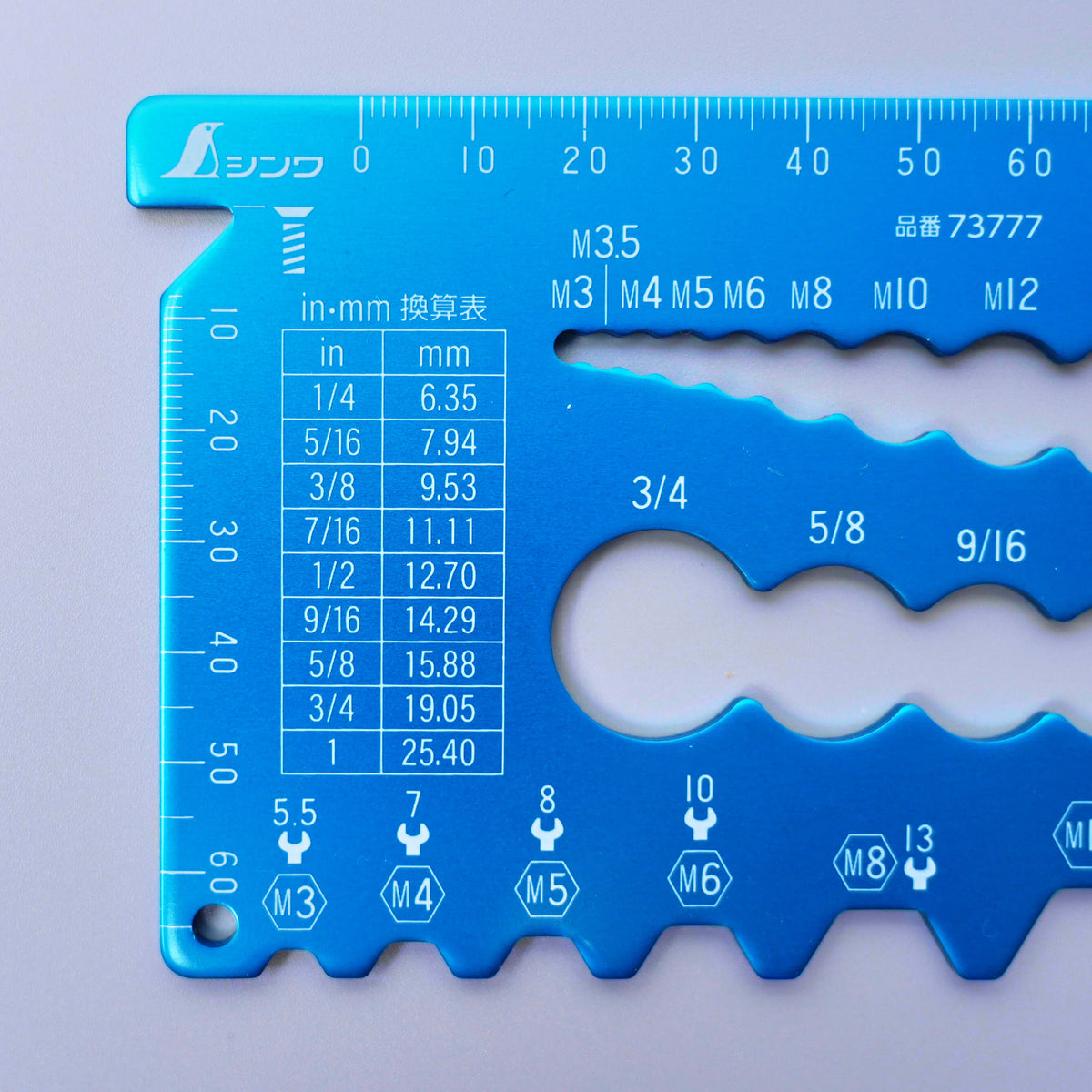

Built-in inch-to-millimetre conversion table provides a convenient reference while you work.

Specifications

• Overall Size: 80 × 160 × 2.5 mm
• Weight: 62 g
• Material: Aluminium
• Compatible Sizes

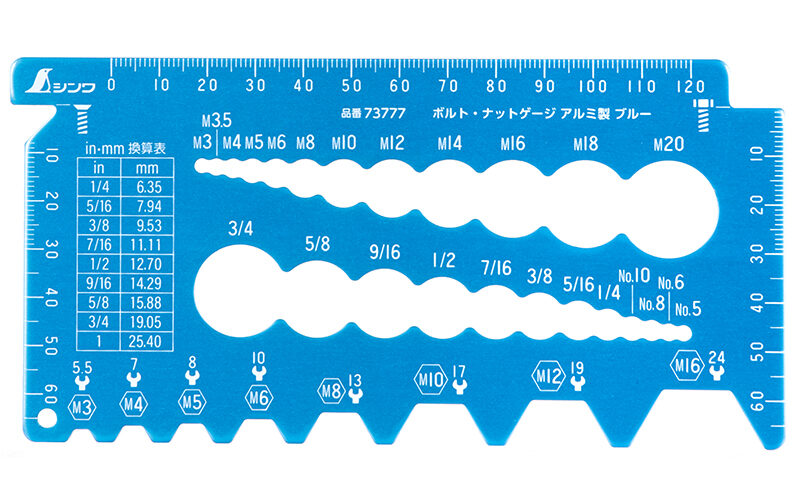

• Metric Thread Gauge: M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20
• Imperial Thread Gauge: No. 5, No. 6, No. 8, No. 10, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4"
• Nut Gauge: M3, M4, M5, M6, M8, M10, M12, M16 (JIS-compliant nuts only)
• Length Gauge:

• • Countersunk screws: up to 65 mm (1 mm increments from 8–30 mm, 5 mm increments from 30–65 mm)

  • Hex bolts, socket head cap screws, pan head screws and similar: up to 65 mm (1 mm increments from 0–30 mm, 5 mm increments from 30–65 mm)
