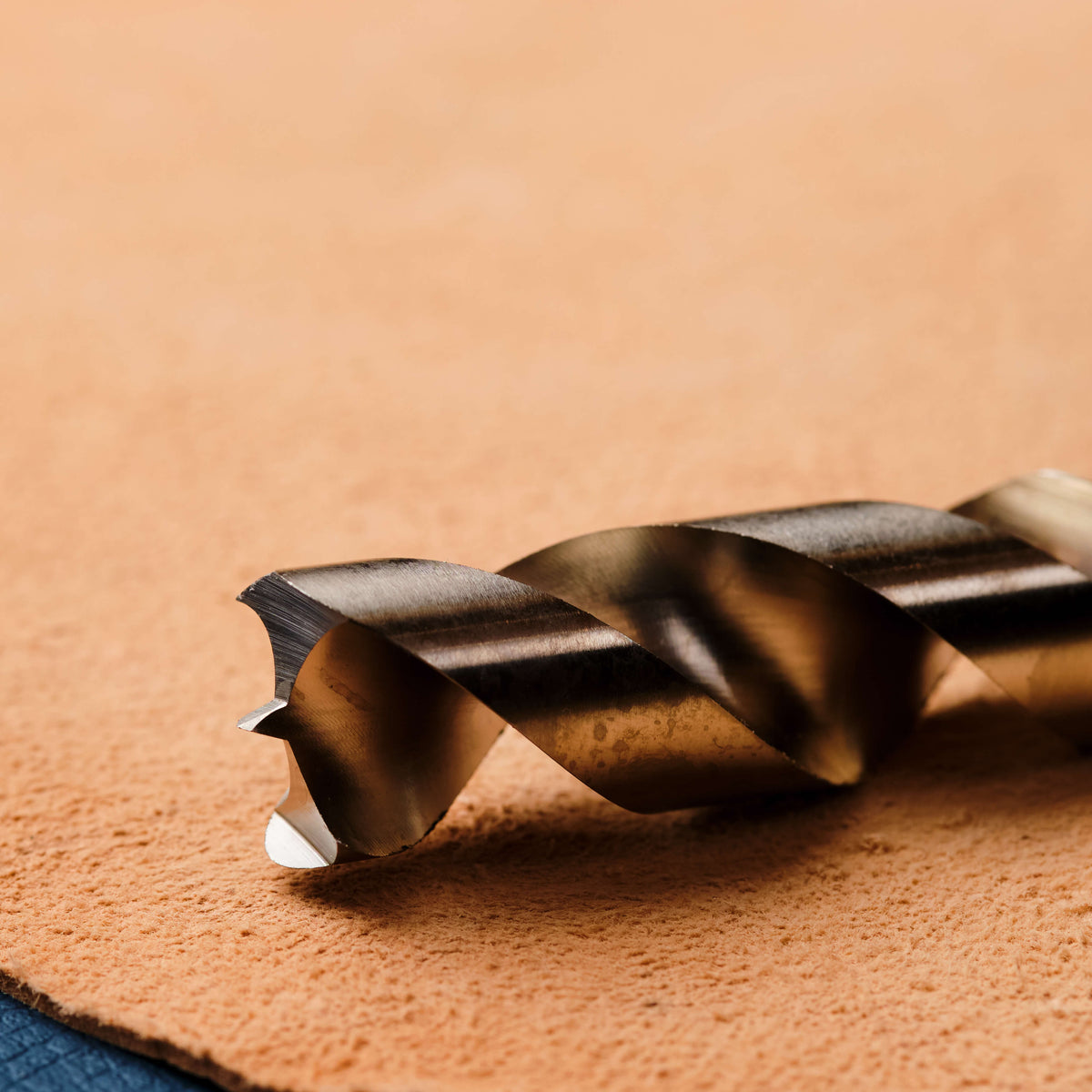

Close-up of the STAR-M bit's hooked spurs and twist cutting edge

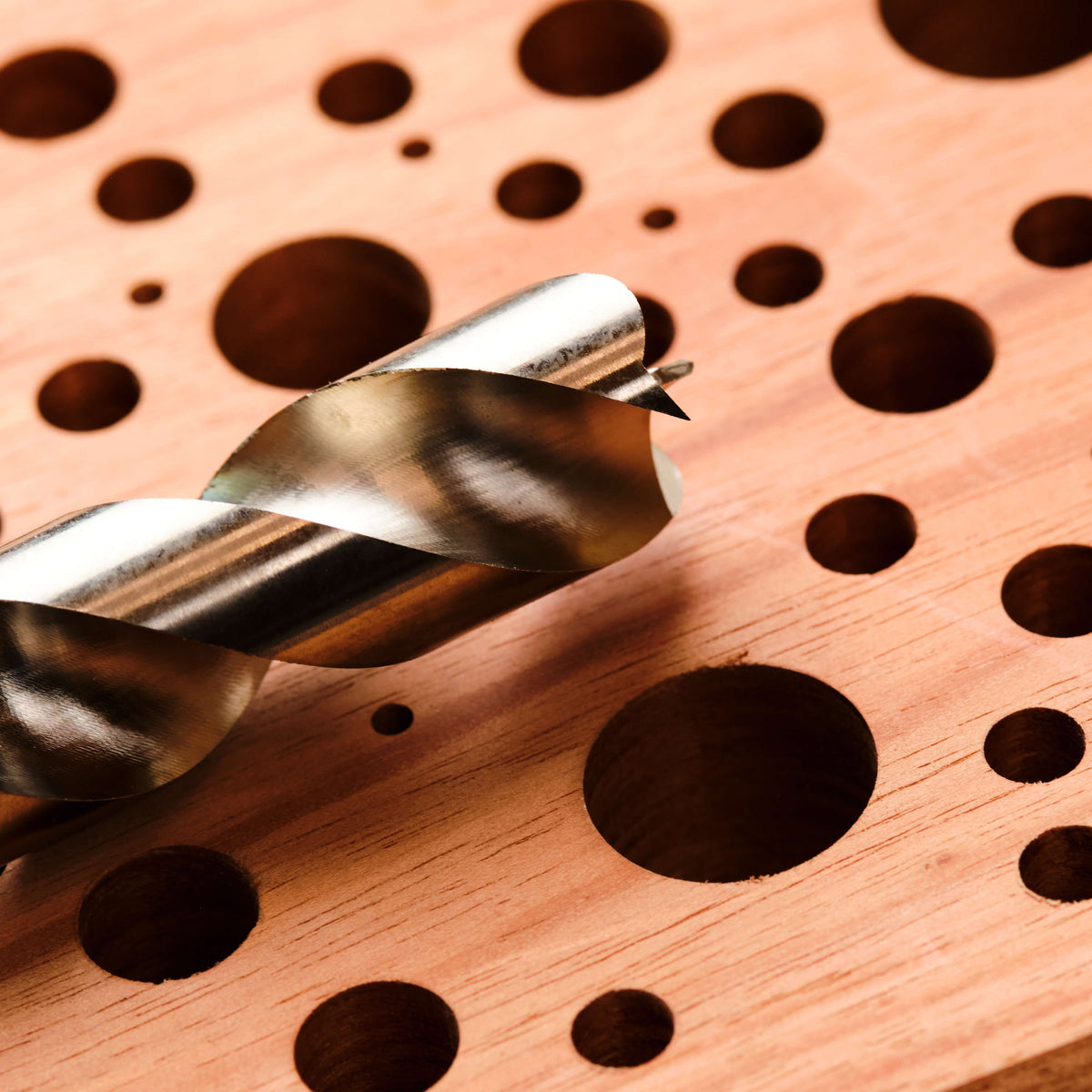

STAR-M drill bit beside clean holes drilled in timber
STAR-M bit in a drill chuck, showing the centred brad point
Clean holes drilled with STAR-M bits in wood, hardwood, bamboo, PVC, acrylic and rubber
STAR-M bit drilling, with waste carried up the flutes

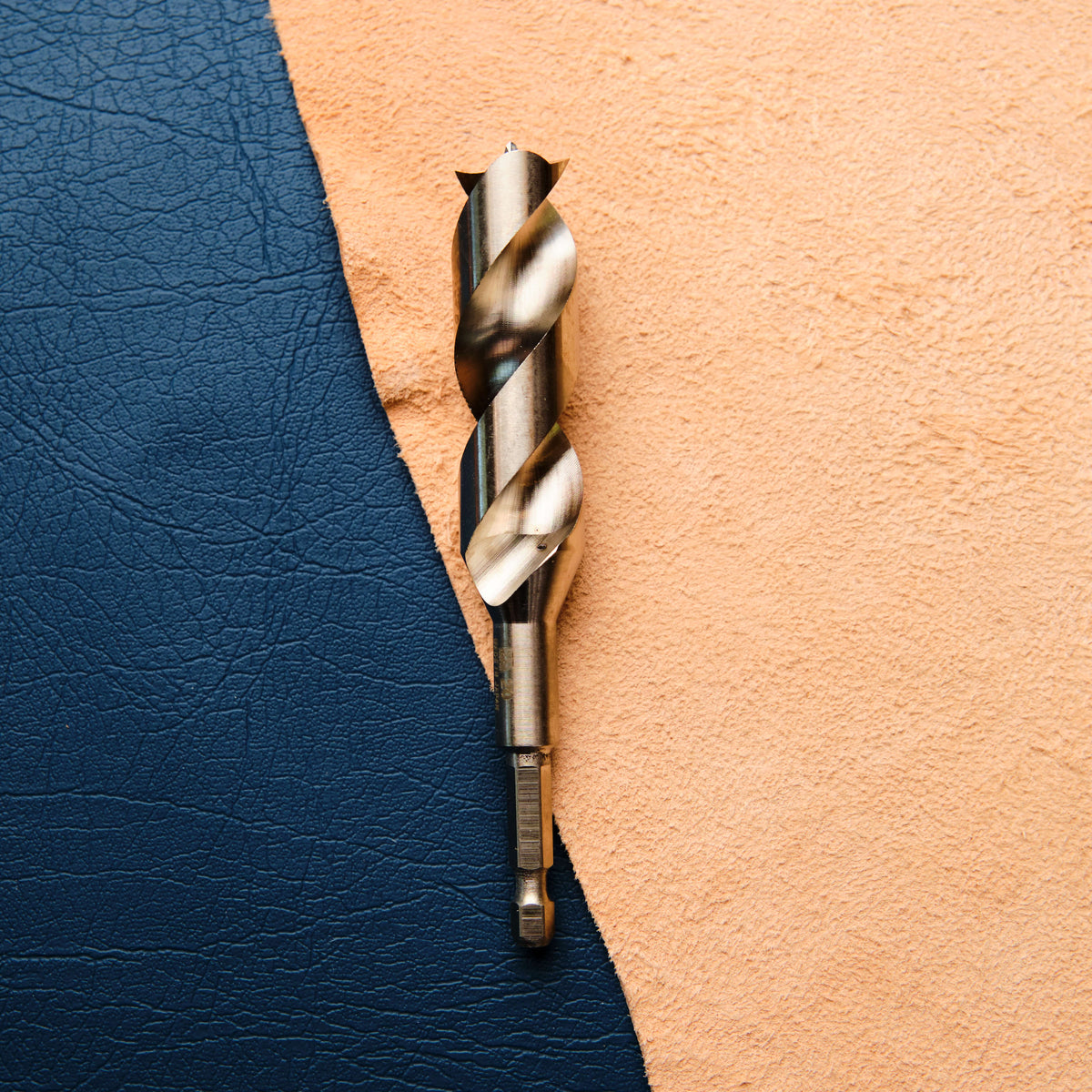

Full-length STAR-M drill bit showing the 6.35mm hex shank

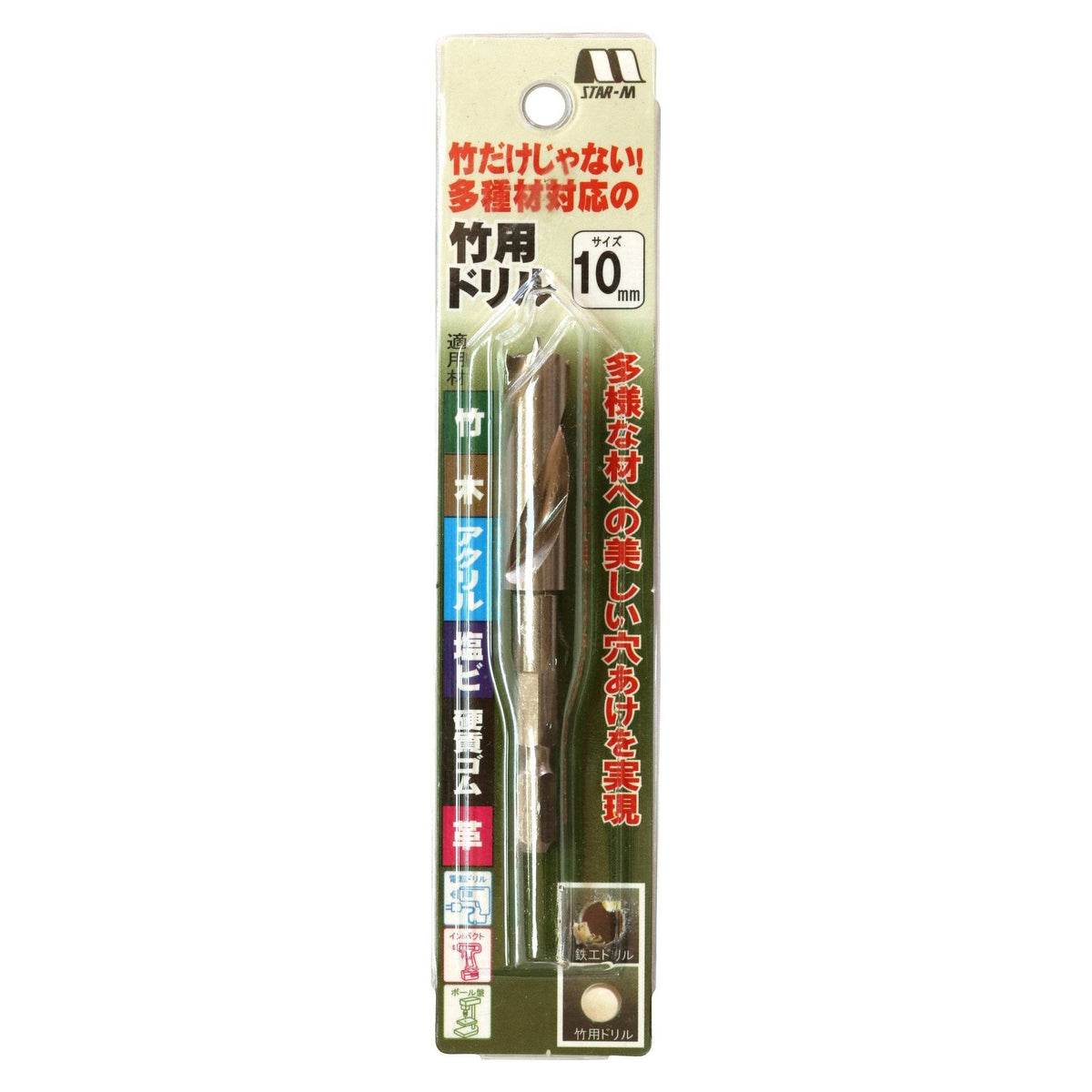

STAR-M No.601 drill bit in its retail packaging

Super Clean Cut Drill Bits by STAR-M

Super Clean Cut Drill Bits by STAR-M

Regular price $15.00
Regular price Sale price $15.00
Tax included. Shipping calculated at checkout.
PayPal
Size:
Quantity:

Need more than one size?

Pick any mix of the 25 sizes on one page and add them all to your cart at once. 5+ bits save 5%, 10+ save 10%.

Build your set
Star-M – Japanese maker About the maker Star-M スターエム Miki, Hyogo · since 1923 Meet Star-M

The cleanest hole you'll ever drill. STAR-M's No.601 Super Clean Cut bits are precision milled in Miki, Japan, with a brad point dead in the centre and knife-like twist flutes. They start exactly on your mark and leave crisp entry and exit holes, across the grain and with it.

How they cut so clean

  1. A centred brad point locates the hole exactly where you mark it, with no wandering.
  2. Hooked spurs and wings score the rim of the hole, then incise a little deeper to part the waste from the surrounding timber.
  3. A curved cutting edge planes the waste out and sends it up the flutes, so the hole stays clean right through.

What they drill

Softwood, hardwood, plywood, bamboo, acrylic, PVC and hard rubber: the soft and fibrous materials that tear or chip with ordinary twist bits. They leave timber and bamboo burr-free and handle brittle acrylic cleanly.

Using them

  • Drills: the 6.35mm (¼″) hex shank fits quick-change chucks and impact drivers. STAR-M recommends a 14.4V or larger impact driver or cordless drill, a corded drill or a drill press.
  • Speed: keep under 3,000 rpm. Use a lower speed for plastics and your drill's highest speed for fibrous materials, and feed the bit in gradually. For acrylic or other resin 15mm or thicker, use 1,300–3,000 rpm with a backing board underneath.
  • Depth: a brad point only goes as deep as you push it, so you control the depth of blind holes as well as through holes. For repeatable depths, add a STAR-M depth stopper.

Sizes

Sizes Overall length Spiral length
3mm – 7mm 80mm 35mm
7.5mm – 12mm 80mm 40mm
13mm – 19mm 116mm 66mm
20mm – 22mm 125mm 75mm

Need more than one size?

Build your own STAR-M set and mix any of the 25 sizes on one page. 5+ bits save 5% and 10+ save 10%, applied automatically in your cart. Keep them sharp and organised in the 15-pocket drill roll bag.
